Ceratizit
5877525106

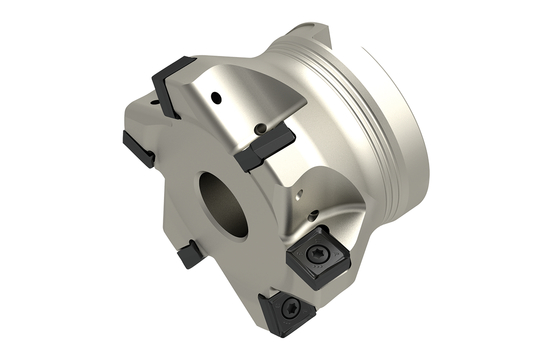

MAXIMILL SHELL SHOULDER MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 2.500 |
|---|---|
| Overall Length (Inch) | 2.250 |
| Long Description | MAXIMILL SHELL SHOULDER MILLING CUTTER A491.250.R.06-12-A100-200-EF |
| Short Description | A491.250.R.06-12-A100-200-EF |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 8.001 |
| Connection diameter machine side (inch) | 1.000 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 3.94 |
| Overall Length (mm) | 5.715 cm |
| Connection diameter machine side (mm) | 25.4 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 1.721 |
| Item Height (Inches) | 3.15 |
| Designation | A491.250.R.06-12-A100-200-EF |
| Cutting Diameter (mm) | 6.35 cm |
| Tool Cutting Edge Angle | 90.0 |
| Item Length (Inches) | 3.94 |
| Hub Diameter (Metric) | 57.15 |
