Ceratizit
5877650008

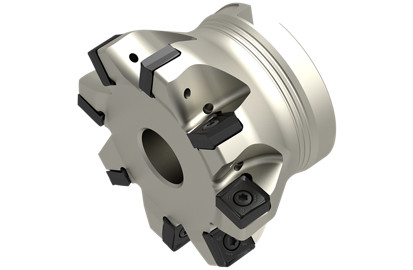

MAXIMILL SHELL SHOULDER MILLING CUTTER
Specifications
| Cutting Diameter (Inch) | 5.000 |
|---|---|
| Overall Length (Inch) | 2.000 |
| Long Description | MAXIMILL SHELL SHOULDER MILLING CUTTER A491.500.R.08-09-B150-200-EF |
| Short Description | A491.500.R.08-09-B150-200-EF |
| Product Line | CERATIZIT_PERFORMANCE |
| Depth of Cut Maximum (Metric) | 5.994 |
| Connection diameter machine side (inch) | 1.500 |
| Coolant | IC_OUTSIDE |
| Item Width (Inches) | 1.38 |
| Overall Length (mm) | 5.08 cm |
| Connection diameter machine side (mm) | 38.1 |
| Connection diameter machine side tolerance | H6 |
| Item Weight (lbs) | 5.591 |
| Item Height (Inches) | 4.45 |
| Designation | A491.500.R.08-09-B150-200-EF |
| Cutting Diameter (mm) | 12.70 cm |
| Tool Cutting Edge Angle | 90.0 |
| Item Length (Inches) | 1.38 |
| Hub Diameter (Metric) | 95.25 |
