Ceratizit
6260233600

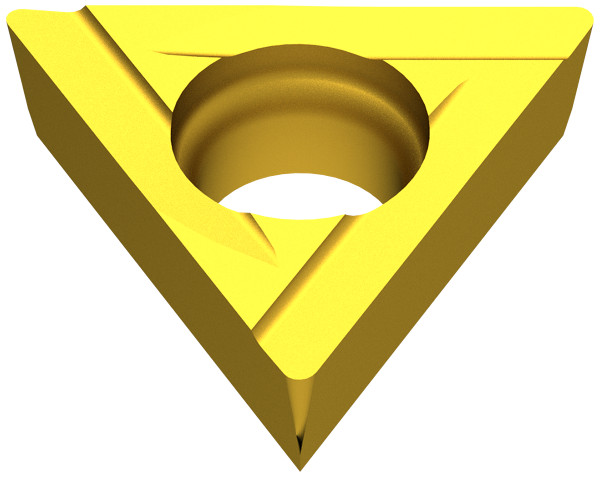

CARBIDE TURNING INSERT
Specifications
| Long Description | CARBIDE TURNING INSERT TOHX 090204ER-G06 BK8425 |
|---|---|
| Short Description | TOHX 090204ER-G06 BK8425 |
| Insert Thickness (Metric) | 2.5 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 2.8 |
| Insert Rake Angle | 6 |
| Item Width (Inches) | 1.57 |
| Cutting Edge Length (Metric) | 9.12 |
| Base Material | HM |
| Item Weight (lbs) | 0.047 |
| Item Height (Inches) | 0.51 |
| Corner Radius (Metric) | 0.4 |
| Item Length (Inches) | 3.86 |
| Clearance Angle Major | 8 |
| Corner Radius (Inch) | 0.016 |
| Insert Included Angle | 60 |
| Inscribed Circle Diameter (Metric) | 5.6 |
| Insert Thickness (Inch) | 0.098 |
