Ceratizit
6260312602

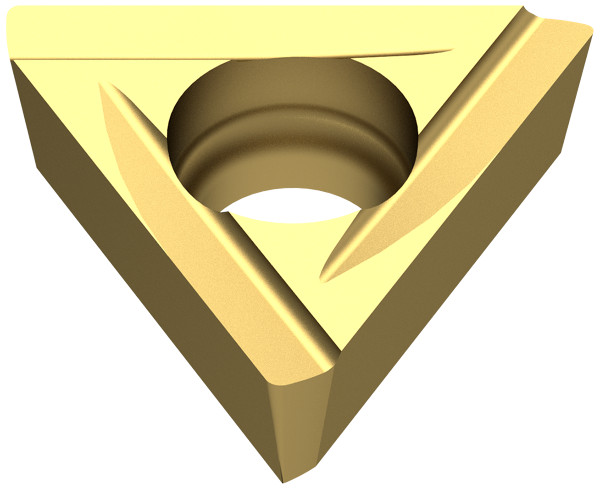

CARBIDE TURNING INSERT
Specifications
| Long Description | CARBIDE TURNING INSERT TOHX 140304EL-G12 BK6425 |
|---|---|
| Short Description | TOHX 140304EL-G12 BK6425 |
| Insert Thickness (Metric) | 3 |
| Insert Hand | LEFT |
| Screw Hole Diameter (Metric) | 3.8 |
| Insert Rake Angle | 12 |
| Item Width (Inches) | 1.57 |
| Cutting Edge Length (Metric) | 13.62 |
| Base Material | HM |
| Item Weight (lbs) | 0.078 |
| Item Height (Inches) | 0.51 |
| Corner Radius (Metric) | 0.4 |
| Item Length (Inches) | 3.86 |
| Clearance Angle Major | 8 |
| Corner Radius (Inch) | 0.016 |
| Insert Included Angle | 60 |
| Inscribed Circle Diameter (Metric) | 8.2 |
| Insert Thickness (Inch) | 0.118 |
