Ceratizit
6261461602

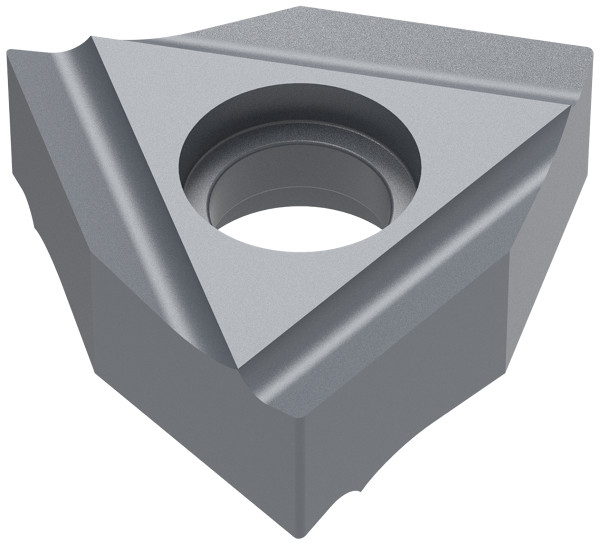

CARBIDE INDEXABLE INSERT
Specifications
| Long Description | CARBIDE INDEXABLE INSERT WNHX 08T302ER-G18 P25 |
|---|---|
| Short Description | WNHX 08T302ER-G18 P25 |
| Insert Thickness (Metric) | 4.5 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 4.7 |
| Insert Rake Angle | 18 |
| Item Width (Inches) | 1.57 |
| Cutting Edge Length (Metric) | 7.5 |
| Base Material | HM |
| Item Weight (lbs) | 0.161 |
| Item Height (Inches) | 0.51 |
| Corner Radius (Metric) | 0.2 |
| Item Length (Inches) | 3.86 |
| Corner Radius (Inch) | 0.008 |
| Insert Included Angle | 84 |
| Inscribed Circle Diameter (Metric) | 12 |
| Insert Thickness (Inch) | 0.177 |
| Cutting Edge Angle Major | 24 |
