Ceratizit
6262560403

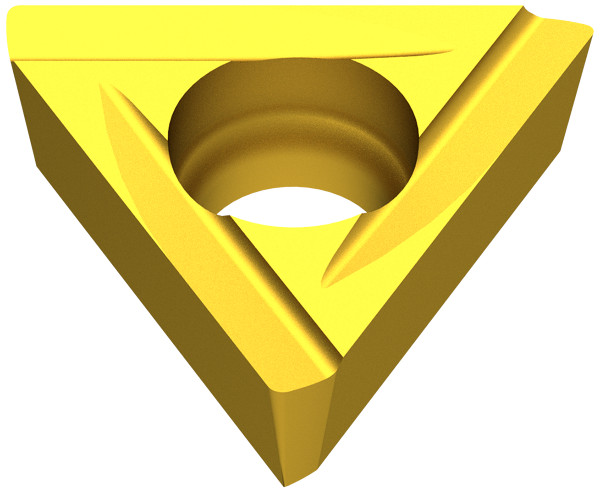

CERMET TURNING INSERT
Specifications
| Long Description | CERMET TURNING INSERT TOHX 06T102EL-US12 CK38 |
|---|---|
| Short Description | TOHX 06T102EL-US12 CK38 |
| Insert Thickness (Metric) | 1.8 |
| Insert Hand | LEFT |
| Screw Hole Diameter (Metric) | 2.2 |
| Insert Rake Angle | 12 |
| Item Width (Inches) | 1.57 |
| Cutting Edge Length (Metric) | 6.5 |
| Base Material | CERMET |
| Item Weight (lbs) | 0.032 |
| Item Height (Inches) | 0.51 |
| Corner Radius (Metric) | 0.2 |
| Item Length (Inches) | 3.86 |
| Clearance Angle Major | 8 |
| Corner Radius (Inch) | 0.008 |
| Insert Included Angle | 60 |
| Inscribed Circle Diameter (Metric) | 4 |
| Insert Thickness (Inch) | 0.071 |
