Ceratizit
6262631700

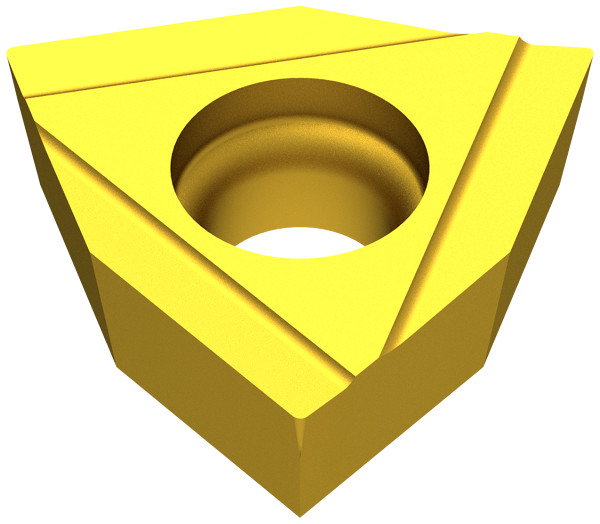

CARBIDE INDEXABLE INSERT
Specifications
| Long Description | CARBIDE INDEXABLE INSERT WOHX 05T302EL-G06 BK8425 |
|---|---|
| Short Description | WOHX 05T302EL-G06 BK8425 |
| Insert Thickness (Metric) | 3.8 |
| Insert Hand | LEFT |
| Screw Hole Diameter (Metric) | 2.85 |
| Insert Rake Angle | 6 |
| Item Width (Inches) | 1.57 |
| Cutting Edge Length (Metric) | 5.3 |
| Base Material | HM |
| Item Weight (lbs) | 0.084 |
| Item Height (Inches) | 0.51 |
| Corner Radius (Metric) | 0.2 |
| Item Length (Inches) | 3.86 |
| Clearance Angle Major | 8 |
| Corner Radius (Inch) | 0.008 |
| Insert Included Angle | 80 |
| Inscribed Circle Diameter (Metric) | 8 |
| Insert Thickness (Inch) | 0.15 |
