Ceratizit
6262646302

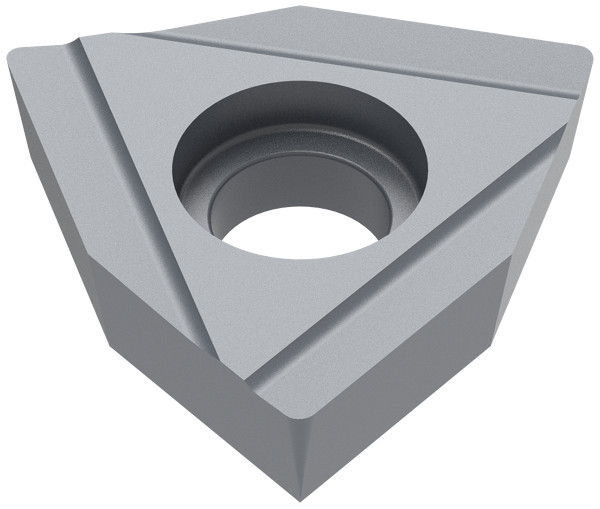

CARBIDE INDEXABLE INSERT
Specifications
| Long Description | CARBIDE INDEXABLE INSERT WOHX 100504ER-G06 P25M |
|---|---|
| Short Description | WOHX 100504ER-G06 P25M |
| Insert Thickness (Metric) | 5.3 |
| Insert Hand | RIGHT |
| Screw Hole Diameter (Metric) | 4.9 |
| Insert Rake Angle | 6 |
| Item Width (Inches) | 2.2 |
| Cutting Edge Length (Metric) | 9.9 |
| Base Material | HM |
| Item Weight (lbs) | 0.54 |
| Item Height (Inches) | 0.55 |
| Corner Radius (Metric) | 0.4 |
| Item Length (Inches) | 5.43 |
| Clearance Angle Major | 8 |
| Corner Radius (Inch) | 0.016 |
| Insert Included Angle | 80 |
| Inscribed Circle Diameter (Metric) | 15 |
| Insert Thickness (Inch) | 0.209 |
