Ceratizit
6286903600

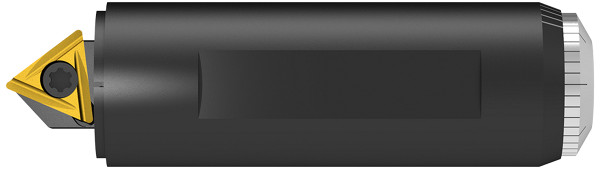

MICRO-ADJUSTABLE CARTRIDGE
Specifications
| Long Description | MICRO-ADJUSTABLE CARTRIDGE CARTRIDGE FZ12-36-3 |
|---|---|
| Short Description | CARTRIDGE FZ12-36-3 |
| Connection diameter machine side (inch) | 0.472 |
| Cutting diameter maximum (inch) | 1.732 |
| Item Width (Inches) | 0.83 |
| Overall Length (mm) | 4.03 cm |
| Connection diameter machine side (mm) | 12 |
| Connection diameter machine side tolerance | g6 |
| Item Weight (lbs) | 0.042 |
| Item Height (Inches) | 0.83 |
| Functional Length (Metric) | 40.3 |
| Adjustment Range (Inch) | 0.197 |
| Item Length (Inches) | 1.97 |
| Cutting diameter minimum (inch) | 1.417 |
| Cutting diameter maximum (Metric) | 44 |
| Head Length (Inch) | 0.268 |
| Adjustment Range (Metric) | 5 |
| Cutting diameter minimum (Metric) | 36 |
| Head Length (Metric) | 6.8 |
| Tightening Torque (Nm) | 0,62 |
| Body Length (Metric) | 33.5 |
| Body Length (Inch) | 1.319 |
| Overall Length (Inch) | 1.587 |
