Ceratizit

70100544

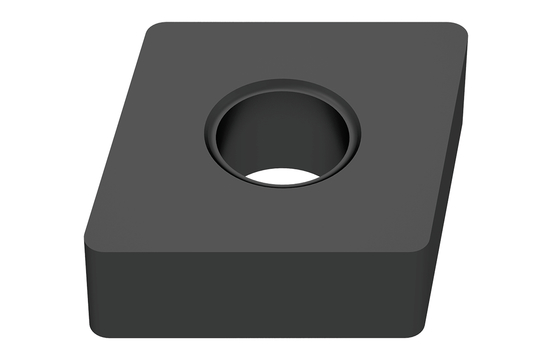

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)6.35
Corner Radius (Metric)1.2
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.05
StyleCNMA
Thickness (Inch)0.25
Short DescriptionCNMA 160612EN CTCK120
Long DescriptionCARBIDE TURNING INSERT CNMA 160612EN CTCK120
GradeCTCK120
Unit Of MeasureMetric
Cutting Edge Length16.10 mm
Inscribed Circle Diameter15.87 mm
Inscribed Circle Diameter (Decimal)0.63
Inscribed Circle Diameter (Metric)15.87
Cutting Edge Length (Decimal)0.64
Cutting Edge Length (Metric)16.1
Direction Of HandNeutral
Screw Hole Diameter (Decimal)0.25
Screw Hole Diameter (Metric)6.35
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)6.35
Insert HandNEUTRAL
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.496
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.25
