IBC Member Market

Ceratizit

70119546

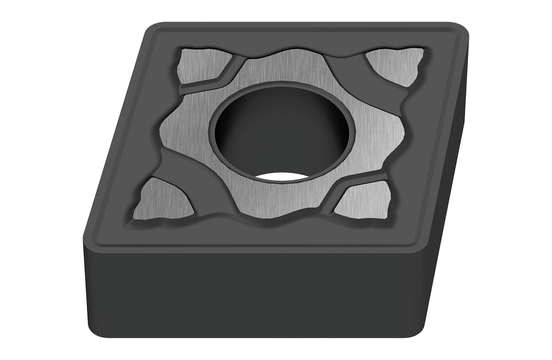

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)6.35
Corner Radius (Metric)1.6
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.07
StyleCNMG
Thickness (Inch)0.25
Short DescriptionCNMG 160616EN-M70 CTCK120
Long DescriptionCARBIDE TURNING INSERT CNMG 160616EN-M70 CTCK120
GradeCTCK120
Unit Of MeasureMetric
Cutting Edge Length16.10 mm
Inscribed Circle Diameter15.87 mm
Inscribed Circle Diameter (Decimal)0.63
Inscribed Circle Diameter (Metric)15.87
Cutting Edge Length (Decimal)0.64
Cutting Edge Length (Metric)16.1
Direction Of HandNeutral
Chip Breaker-M70
Screw Hole Diameter (Decimal)0.25
Screw Hole Diameter (Metric)6.35
Rake Angle15.70 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)6.35
Insert HandNEUTRAL
Insert Rake Angle15.7
Item Width (Inches)2.2
Base MaterialHM
Item Weight (lbs)0.514
Item Height (Inches)2.2
Item Length (Inches)5.43
Insert Included Angle80
Insert Thickness (Inch)0.25
