Ceratizit

70155904

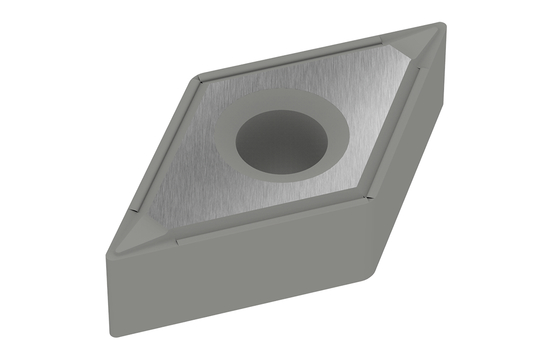

CERMET TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.4
MaterialCERMET
Included Angle55 degrees
Corner Radius (Inch)0.02
StyleDNMG
Thickness (Inch)0.19
Short DescriptionDNMG 110404EN-CF TCM10
Long DescriptionCERMET TURNING INSERT DNMG 110404EN-CF TCM10
GradeTCM10
Unit Of MeasureMetric
Cutting Edge Length11.60 mm
Inscribed Circle Diameter9.52 mm
Inscribed Circle Diameter (Decimal)0.38
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Decimal)0.46
Cutting Edge Length (Metric)11.6
Direction Of HandNeutral
Chip Breaker-CF
Screw Hole Diameter (Decimal)0.15
Screw Hole Diameter (Metric)3.81
Rake Angle12 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle12
Item Width (Inches)1.57
Base MaterialCERMET
Item Weight (lbs)0.093
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle55
Insert Thickness (Inch)0.187
