Ceratizit

70225446

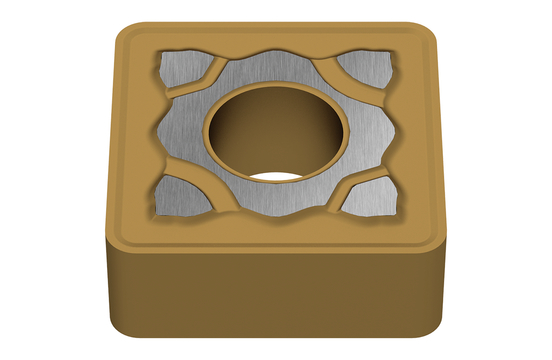

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)6.35
Corner Radius (Metric)1.6
MaterialCarbide
Included Angle90 degrees
Corner Radius (Inch)0.07
StyleSNMG
Thickness (Inch)0.25
Short DescriptionSNMG 190616EN-M70 CTC2135
Long DescriptionCARBIDE TURNING INSERT SNMG 190616EN-M70 CTC2135
GradeCTC2135
Unit Of MeasureMetric
Cutting Edge Length19.05 mm
Inscribed Circle Diameter19.05 mm
Inscribed Circle Diameter (Decimal)0.75
Inscribed Circle Diameter (Metric)19.05
Cutting Edge Length (Decimal)0.75
Cutting Edge Length (Metric)19.05
Direction Of HandNeutral
Chip Breaker-M70
Screw Hole Diameter (Decimal)0.32
Screw Hole Diameter (Metric)7.94
Rake Angle15.70 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)6.35
Insert HandNEUTRAL
Insert Rake Angle15.7
Item Width (Inches)2.2
Base MaterialHM
Item Weight (lbs)0.641
Item Height (Inches)2.2
Item Length (Inches)5.43
Insert Included Angle90
Insert Thickness (Inch)0.25
