Ceratizit
70240552

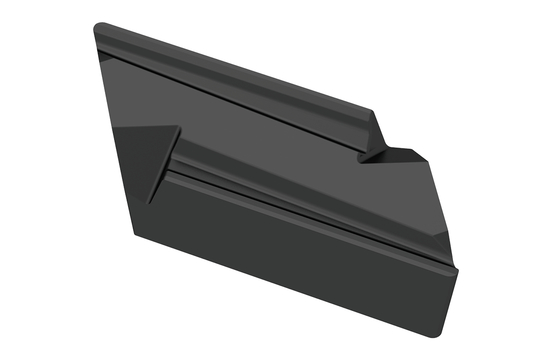

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 4.76 |
|---|---|
| Corner Radius (Metric) | 0.5 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.02 |
| Style | KNUX |
| Thickness (Inch) | 0.19 |
| Short Description | KNUX 160405EL-11 CTCK120 |
| Long Description | CARBIDE TURNING INSERT KNUX 160405EL-11 CTCK120 |
| Grade | CTCK120 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 16 mm |
| Inscribed Circle Diameter | 9.52 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Decimal) | 0.63 |
| Cutting Edge Length (Metric) | 16 |
| Direction Of Hand | Left |
| Chip Breaker | -11 |
| Tolerance Class | U |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 4.76 |
| Insert Hand | LEFT |
| Item Width (Inches) | 2.2 |
| Base Material | HM |
| Item Weight (lbs) | 0.337 |
| Item Height (Inches) | 2.2 |
| Item Length (Inches) | 5.43 |
| Insert Included Angle | 55 |
| Insert Thickness (Inch) | 0.187 |
