Ceratizit

70253464

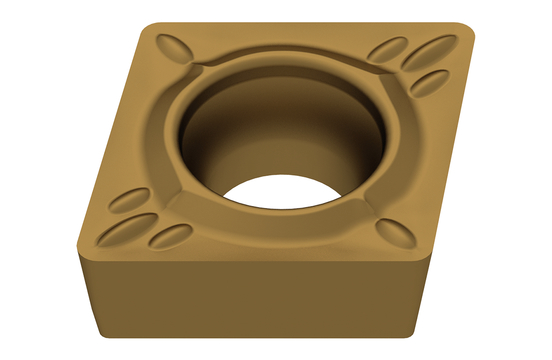

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)3.97
Corner Radius (Metric)0.4
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.02
StyleCCMT
Thickness (Inch)0.16
Short DescriptionCCMT 09T304EN-SF CTC2135
Long DescriptionCARBIDE TURNING INSERT CCMT 09T304EN-SF CTC2135
GradeCTC2135
Unit Of MeasureMetric
Cutting Edge Length9.70 mm
Inscribed Circle Diameter9.52 mm
Inscribed Circle Diameter (Decimal)0.38
Inscribed Circle Diameter (Metric)9.52
Cutting Edge Length (Decimal)0.39
Cutting Edge Length (Metric)9.7
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-SF
Screw Hole Diameter (Decimal)0.18
Screw Hole Diameter (Metric)4.4
Rake Angle15 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)3.97
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.129
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.156
