Ceratizit

70254102

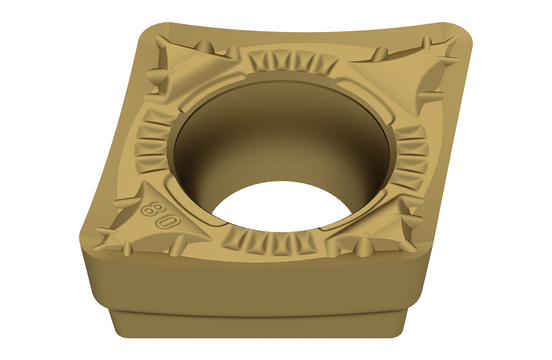

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.4
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.02
StyleCCXT
Thickness (Inch)0.1
Short DescriptionCCXT 060204-LMR H20X+PC0012
Long DescriptionCARBIDE TURNING INSERT CCXT 060204-LMR H20X+PC0012
GradeCWN2120
Unit Of MeasureMetric
Cutting Edge Length6.40 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.26
Cutting Edge Length (Metric)6.4
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-M81
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Rake Angle20 degrees
Tolerance ClassX
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Insert Rake Angle20
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.046
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.094
