IBC Member Market

Ceratizit

70263030

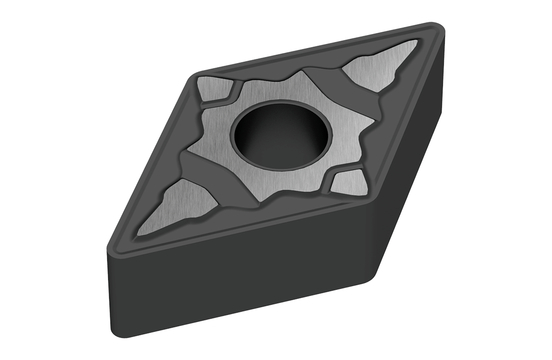

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)6.35
Corner Radius (Metric)0.8
MaterialCarbide
Included Angle55 degrees
Corner Radius (Inch)0.04
StyleDNMG
Thickness (Inch)0.25
Short DescriptionDNMG 150608EN-M70 CTCK110
Long DescriptionCARBIDE TURNING INSERT DNMG 150608EN-M70 CTCK110
GradeCTCK110
Unit Of MeasureMetric
Cutting Edge Length15.50 mm
Inscribed Circle Diameter12.70 mm
Inscribed Circle Diameter (Decimal)0.5
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Decimal)0.61
Cutting Edge Length (Metric)15.5
Direction Of HandNeutral
Chip Breaker-M70
Screw Hole Diameter (Decimal)0.21
Screw Hole Diameter (Metric)5.16
Rake Angle15.70 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)6.35
Insert HandNEUTRAL
Insert Rake Angle15.7
Item Width (Inches)2.2
Base MaterialHM
Item Weight (lbs)0.428
Item Height (Inches)2.2
Item Length (Inches)5.43
Insert Included Angle55
Insert Thickness (Inch)0.25
