Ceratizit
7026376000

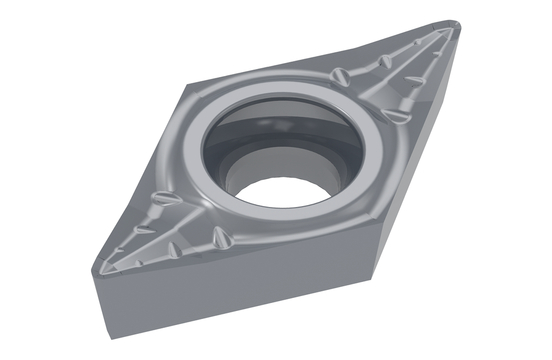

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.97 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | Carbide |
| Included Angle | 55 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | DCGT |
| Thickness (Inch) | 0.16 |
| Short Description | DCGT 11T308FN-25Q CTPX710 |
| Long Description | CARBIDE TURNING INSERT DCGT 11T308FN-25Q CTPX710 |
| Grade | CTPX710 |
| Unit Of Measure | Imperial |
| Cutting Edge Length | 0.46 Inch |
| Inscribed Circle Diameter | 0.38 Inch |
| Inscribed Circle Diameter (Metric) | 9.52 |
| Cutting Edge Length (Metric) | 11.6 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -25Q |
| Screw Hole Diameter (Decimal) | 0.18 |
| Screw Hole Diameter (Metric) | 4.4 |
| Rake Angle | 20 degrees |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3.97 |
| Insert Hand | NEUTRAL |
| Insert Rake Angle | 20 |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.123 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 55 |
| Insert Thickness (Inch) | 0.156 |
