Ceratizit
7.0266604E7

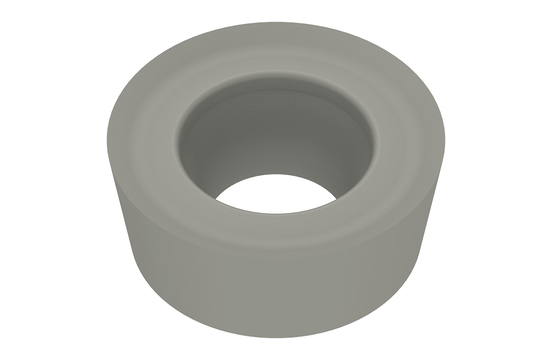

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 5.0 |
| Material | Carbide |
| Corner Radius (Inch) | 0.2 |
| Style | RCGT |
| Thickness (Inch) | 0.13 |
| Short Description | RCGT 1003MOFN-27 H10T |
| Long Description | CARBIDE TURNING INSERT RCGT 1003MOFN-27 H10T |
| Grade | H10T |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 10 mm |
| Inscribed Circle Diameter (Decimal) | 0.4 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -27.0 |
| Screw Hole Diameter (Decimal) | 0.16 |
| Screw Hole Diameter (Metric) | 4.0 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
