Ceratizit

70268444

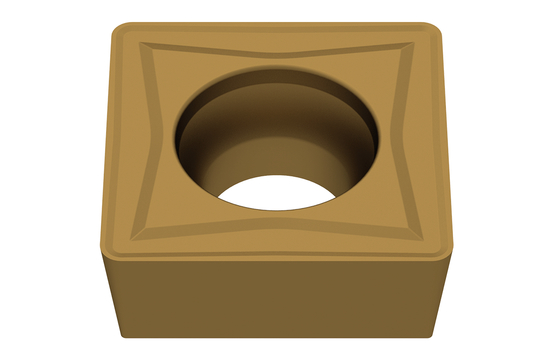

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)4.76
Corner Radius (Metric)0.8
MaterialCarbide
Included Angle90 degrees
Corner Radius (Inch)0.04
StyleSCMT
Thickness (Inch)0.19
Short DescriptionSCMT 120408EN-SM CTC2135
Long DescriptionCARBIDE TURNING INSERT SCMT 120408EN-SM CTC2135
GradeCTC2135
Unit Of MeasureMetric
Cutting Edge Length12.70 mm
Inscribed Circle Diameter12.70 mm
Inscribed Circle Diameter (Decimal)0.5
Inscribed Circle Diameter (Metric)12.7
Cutting Edge Length (Decimal)0.5
Cutting Edge Length (Metric)12.7
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-SM
Screw Hole Diameter (Decimal)0.22
Screw Hole Diameter (Metric)5.5
Rake Angle15 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)4.76
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.222
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle90
Insert Thickness (Inch)0.187
