Ceratizit

70274018

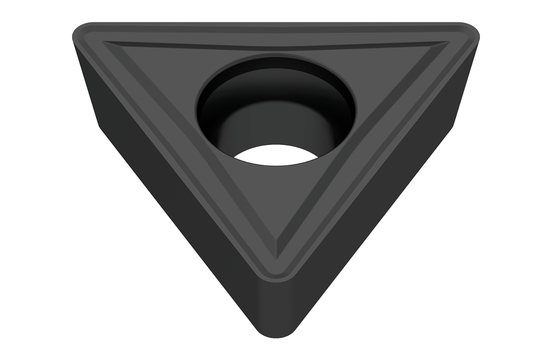

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)2.38
Corner Radius (Metric)0.8
MaterialCarbide
Included Angle60 degrees
Corner Radius (Inch)0.04
StyleTCMT
Thickness (Inch)0.1
Short DescriptionTCMT 110208EN-SM CTCK110
Long DescriptionCARBIDE TURNING INSERT TCMT 110208EN-SM CTCK110
GradeCTCK110
Unit Of MeasureMetric
Cutting Edge Length11 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.44
Cutting Edge Length (Metric)11
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-SM
Screw Hole Diameter (Decimal)0.11
Screw Hole Diameter (Metric)2.8
Rake Angle15 degrees
Tolerance ClassM
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)2.38
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.06
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle60
Insert Thickness (Inch)0.094
