Ceratizit

70277846

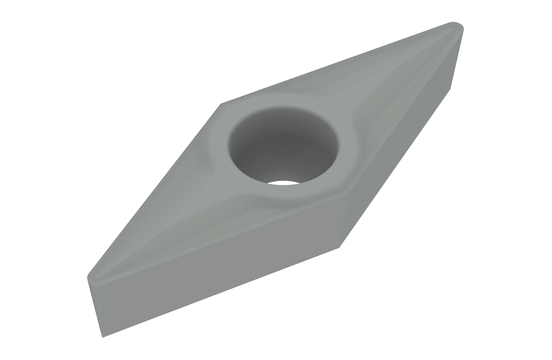

CERMET TURNING INSERT

Specifications

Thickness (Metric)3.18
Corner Radius (Metric)0.4
MaterialCERMET
Included Angle35 degrees
Corner Radius (Inch)0.02
StyleVCGT
Thickness (Inch)0.13
Short DescriptionVCGT 110304EN-SF TCM407
Long DescriptionCERMET TURNING INSERT VCGT 110304EN-SF TCM407
GradeTCM407
Unit Of MeasureMetric
Cutting Edge Length11.10 mm
Inscribed Circle Diameter6.35 mm
Inscribed Circle Diameter (Decimal)0.25
Inscribed Circle Diameter (Metric)6.35
Cutting Edge Length (Decimal)0.44
Cutting Edge Length (Metric)11.1
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-SF
Screw Hole Diameter (Decimal)0.12
Screw Hole Diameter (Metric)2.9
Rake Angle15 degrees
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)3.18
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialCERMET
Item Weight (lbs)0.052
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle35
Insert Thickness (Inch)0.125
