Ceratizit
70280310

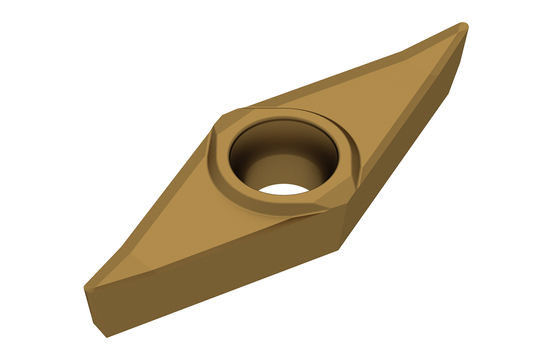

CARBIDE TURNING INSERT
Specifications
| Thickness (Metric) | 3.18 |
|---|---|
| Corner Radius (Metric) | 0.8 |
| Material | Carbide |
| Included Angle | 35 degrees |
| Corner Radius (Inch) | 0.04 |
| Style | VCGT |
| Thickness (Inch) | 0.13 |
| Short Description | VCGT 110308-AL CWN15 |
| Long Description | CARBIDE TURNING INSERT VCGT 110308-AL CWN15 |
| Grade | CWN15 |
| Unit Of Measure | Metric |
| Cutting Edge Length | 11.10 mm |
| Inscribed Circle Diameter | 6.35 mm |
| Inscribed Circle Diameter (Decimal) | 0.25 |
| Inscribed Circle Diameter (Metric) | 6.35 |
| Cutting Edge Length (Decimal) | 0.44 |
| Cutting Edge Length (Metric) | 11.1 |
| Direction Of Hand | Neutral |
| Clearance Angle Major | 7 degrees |
| Chip Breaker | -27 |
| Screw Hole Diameter (Decimal) | 0.12 |
| Screw Hole Diameter (Metric) | 2.9 |
| Tolerance Class | G |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Thickness (Metric) | 3.18 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.103 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 3.86 |
| Insert Included Angle | 35 |
| Insert Thickness (Inch) | 0.125 |
