Ceratizit

70287602

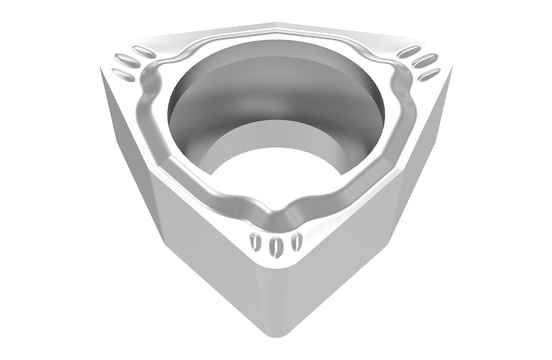

CARBIDE TURNING INSERT

Specifications

Thickness (Metric)1.59
Corner Radius (Metric)0.4
MaterialCarbide
Included Angle80 degrees
Corner Radius (Inch)0.02
StyleWCGT
Thickness (Inch)0.07
Short DescriptionWCGT 020104FN-SF H216T
Long DescriptionCARBIDE TURNING INSERT WCGT 020104FN-SF H216T
GradeH216T
Unit Of MeasureMetric
Cutting Edge Length2.710 mm
Inscribed Circle Diameter3.97 mm
Inscribed Circle Diameter (Decimal)0.16
Inscribed Circle Diameter (Metric)3.97
Cutting Edge Length (Decimal)0.11
Cutting Edge Length (Metric)2.71
Direction Of HandNeutral
Clearance Angle Major7 degrees
Chip Breaker-SF
Screw Hole Diameter (Decimal)0.09
Screw Hole Diameter (Metric)2.1
Rake Angle15 degrees
Tolerance ClassG
Product TypeIndustrial Supplies
Unit of MeasureMetric
Product LineCERATIZIT_PERFORMANCE
Insert Thickness (Metric)1.59
Insert HandNEUTRAL
Insert Rake Angle15
Item Width (Inches)1.57
Base MaterialHM
Item Weight (lbs)0.034
Item Height (Inches)1.57
Item Length (Inches)3.86
Insert Included Angle80
Insert Thickness (Inch)0.063
