Ceratizit
70294850

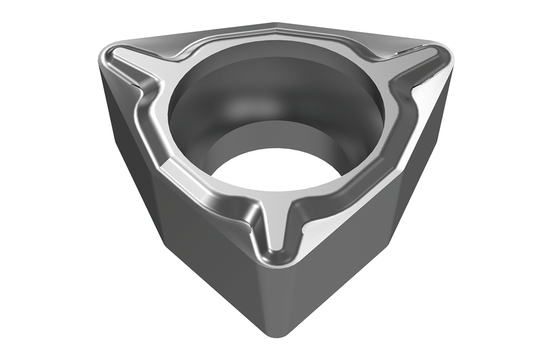

CARBIDE TURNING INSERT
Specifications
| Long Description | CARBIDE TURNING INSERT WCMT 020102 CWC06 |
|---|---|
| Short Description | WCMT 020102 CWC06 |
| Insert Thickness (Metric) | 1.59 |
| Insert Hand | NEUTRAL |
| Screw Hole Diameter (Metric) | 2.1 |
| Item Width (Inches) | 1.57 |
| Cutting Edge Length (Metric) | 2.71 |
| Base Material | CERMET |
| Item Weight (lbs) | 0.058 |
| Item Height (Inches) | 0.51 |
| Corner Radius (Metric) | 0.2 |
| Item Length (Inches) | 3.86 |
| Clearance Angle Major | 7 |
| Corner Radius (Inch) | 0.008 |
| Insert Included Angle | 80 |
| insert interface code | WC0201023N |
| Inscribed Circle Diameter (Metric) | 3.97 |
| Insert Thickness (Inch) | 0.063 |
