Ceratizit
70331653

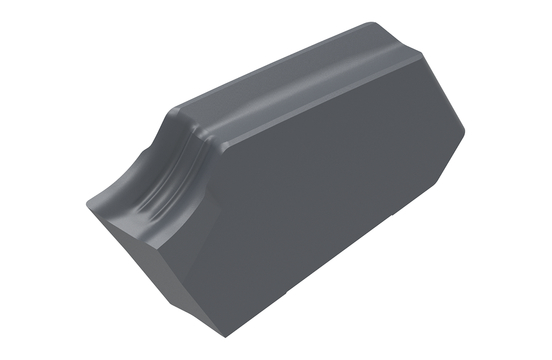

CARBIDE GROOVING INSERT
Specifications
| Type | FX |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Long Description | CARBIDE GROOVING INSERT FX 3.1R5-F1 CTP1340 |
| Short Description | FX 3.1R5-F1 CTP1340 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 0.455 |
| Insert Length (Metric) | 11.55 |
| Insert Hand | RIGHT |
| Tool Lead Angle | 5 |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.124 |
| Cutting Edge Angle Major Right Hand | 5 |
| Item Height (Inches) | 0.51 |
| Designation | FX 3.1 R 5-F1 |
| Cutting Width (Inch) | 0.122 |
| Item Length (Inches) | 3.86 |
| Corner Radius (Inch) | 0.008 |
| Cutting Width (Metric) | 3.1 |
| Corner Radius Tolerance (Metric) | +/-0.05 |
