Ceratizit
70335908

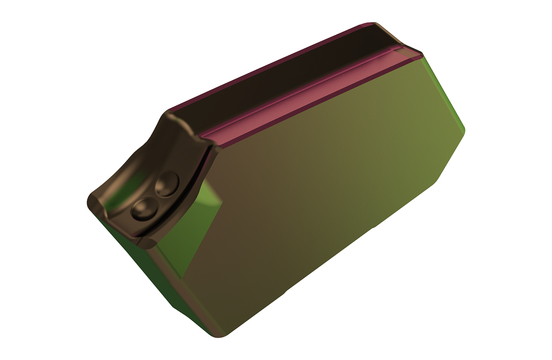

CARBIDE GROOVING INSERT
Specifications
| Type | FX |
|---|---|
| Corner Radius (Metric) | 0.5 |
| Long Description | CARBIDE GROOVING INSERT FX 4.1N0.50-R2 CTCP325 |
| Short Description | FX 4.1N0.50-R2 CTCP325 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.12 |
| Item Height (Inches) | 0.51 |
| Designation | FX 4.1 N 0.50-R2 |
| Cutting Width (Inch) | 0.161 |
| Item Length (Inches) | 3.86 |
| Corner Radius (Inch) | 0.02 |
| Cutting Width (Metric) | 4.1 |
| Corner Radius Tolerance (Metric) | +/-0.05 |
