Ceratizit
70342913

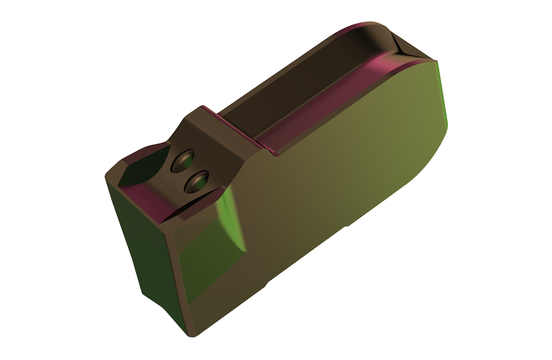

CARBIDE GROOVING INSERT
Specifications
| Type | SX |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Long Description | CARBIDE GROOVING INSERT SX E3.00L6-M1 CTCP325 |
| Short Description | SX E3.00L6-M1 CTCP325 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 0.433 |
| Insert Length (Metric) | 11 |
| Insert Thickness (Metric) | 5.25 |
| Insert Hand | LEFT |
| Insert Rake Angle | 18 |
| Tool Lead Angle | 6 |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.069 |
| Item Height (Inches) | 0.51 |
| Designation | SX E3.00 L 6 |
| Cutting Width (Inch) | 0.118 |
| Item Length (Inches) | 3.86 |
| Clearance Angle Major | 11 |
| Corner Radius (Inch) | 0.008 |
| Cutting Edge Angle Major Left Hand | 6 |
| Cutting Width (Metric) | 3 |
| Insert Thickness (Inch) | 0.207 |
| Corner Radius Tolerance (Metric) | +/-0.05 |
