Ceratizit
70351994

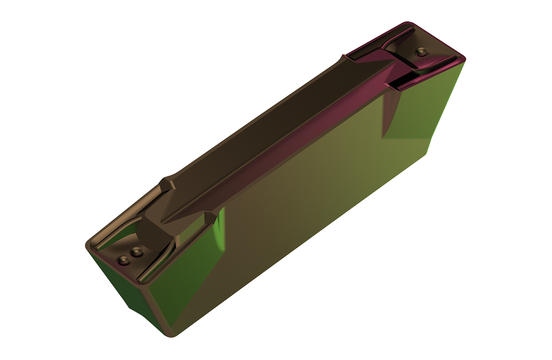

CARBIDE GROOVING INSERT
Specifications
| Type | GX |
|---|---|
| Corner Radius (Metric) | 0.3 |
| Long Description | CARBIDE GROOVING INSERT GX09-2E3.00N0.30-M40 CTCP325 |
| Short Description | GX09-2E3.00N0.30-M40 CTCP325 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 0.354 |
| Insert Length (Metric) | 9 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.044 |
| Item Height (Inches) | 0.51 |
| Designation | GX 09-2 E3.00 N 0.30 |
| Cutting Width (Inch) | 0.118 |
| Item Length (Inches) | 3.86 |
| Corner Radius (Inch) | 0.012 |
| Cutting Width (Metric) | 3 |
| Corner Radius Tolerance (Metric) | +/-0.05 |
