Ceratizit
70352628

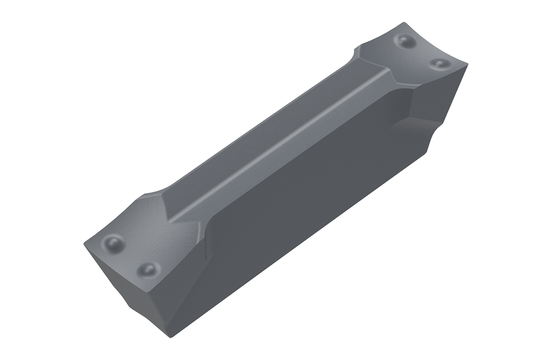

CARBIDE GROOVING INSERT
Specifications
| Type | GX |
|---|---|
| Corner Radius (Metric) | 0.2 |
| Long Description | CARBIDE GROOVING INSERT GX16-3S4.25N CTP1340 |
| Short Description | GX16-3S4.25N CTP1340 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 0.63 |
| Insert Length (Metric) | 16 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 1.57 |
| Base Material | HM |
| Item Weight (lbs) | 0.12 |
| Item Height (Inches) | 0.51 |
| Designation | GX 16-3 S4.25 N |
| Cutting Width (Inch) | 0.167 |
| Item Length (Inches) | 3.86 |
| Corner Radius (Inch) | 0.008 |
| Cutting Width (Metric) | 4.25 |
| Corner Radius Tolerance (Metric) | +/-0.05 |
