Ceratizit
70359630

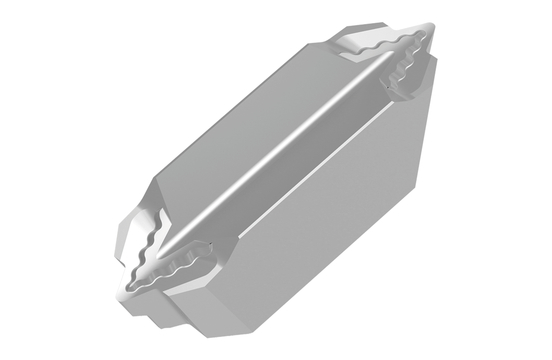

CARBIDE THREADING INSERT
Specifications
| Designation | TC 16-2 EI 14 W |
|---|---|
| Long Description | CARBIDE THREADING INSERT TC16-2 EI 14 W-27P H216T |
| Short Description | TC16-2 EI 14 W-27P H216T |
| Type | TC |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 0.63 |
| Insert Length (Metric) | 16 |
| Profile Distance EX (Metric) | 2.15 |
| Threads per Inch | 14 |
| Item Width (Inches) | 1.57 |
| Profile Included Angle | 55 |
| Base Material | HM |
| Item Weight (lbs) | 0.102 |
| Item Height (Inches) | 0.51 |
| Item Length (Inches) | 3.86 |
| Thread Profile Type | FULL PROFILE |
