Ceratizit
70364604

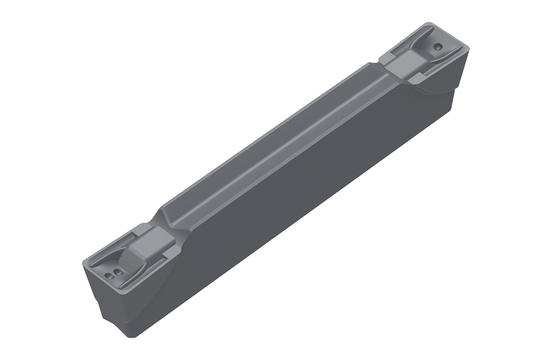

CARBIDE GROOVING INSERT
Specifications
| Type | GX |
|---|---|
| Corner Radius (Metric) | 0.4 |
| Long Description | CARBIDE GROOVING INSERT GX24-3E5.00N0.40-M40 CTP1340 |
| Short Description | GX24-3E5.00N0.40-M40 CTP1340 |
| Product Line | CERATIZIT_PERFORMANCE |
| Insert Length (Inch) | 0.945 |
| Insert Length (Metric) | 24 |
| Insert Hand | NEUTRAL |
| Item Width (Inches) | 2.2 |
| Base Material | HM |
| Item Weight (lbs) | 0.196 |
| Item Height (Inches) | 0.55 |
| Designation | GX 24-3 E5.00 N 0.40 |
| Cutting Width (Inch) | 0.197 |
| Item Length (Inches) | 5.43 |
| Corner Radius (Inch) | 0.016 |
| Cutting Width (Metric) | 5 |
| Corner Radius Tolerance (Metric) | +/-0.05 |
