Ceratizit
70508340

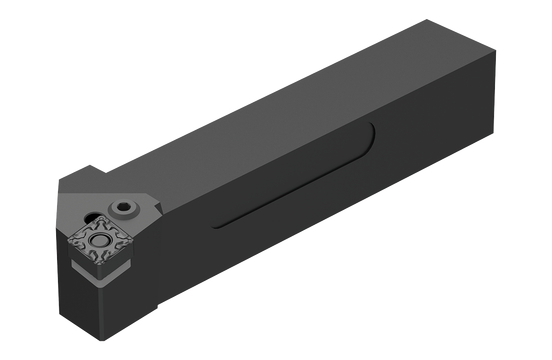

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PCLNR |
| Overall Length (Inch) | 9.85 |
| Short Description | PCLNR 4040 S25 |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PCLNR 4040 S25 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 40 mm |
| Shank Height | 40 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 1.58 |
| Shank Width (Metric) | 40 |
| Shank Height (Metric) | 40 |
| Functional Width (Decimal) | 1.97 |
| Functional Width (Metric) | 50 |
| Head Length (Decimal) | 1.97 |
| Head Length (Metric) | 50 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.6 |
| End Chamfer Distance (Metric) | 15.2 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 40 |
| Functional Height (Decimal) | 1.58 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 48 |
| Overall Height (Decimal) | 1.89 |
| Tightening Torque (Nm) | 8 |
| Holder Form | PCLN95 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 2.4 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 7.255 |
| Item Height (Inches) | 2.4 |
| Item Length (Inches) | 9.92 |
| Rake Angle Orthogonal | 6 |
| Head Length (Inch) | 1.969 |
| Overall Height (Inch) | 1.89 |
| Shank Width (Inch) | 1.575 |
| Shank Height (Inch) | 1.575 |
