Ceratizit
70513032

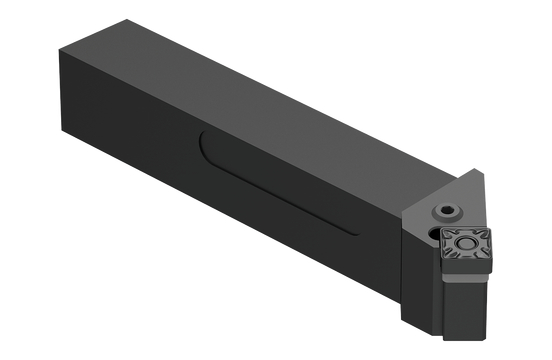

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 179 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PSSNL |
| Overall Length (Inch) | 7.05 |
| Short Description | PSSNL 3225 P12-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PSSNL 3225 P12-T |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 32 mm |
| Orthogonal Rake Angle | 8 degrees |
| Shank Width (Decimal) | 0.99 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 32 |
| Functional Length (Decimal) | 6.7 |
| Functional Length (Metric) | 170 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32 |
| Head Length (Decimal) | 1.16 |
| Head Length (Metric) | 29.3 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.93 |
| End Chamfer Distance (Metric) | 23.55 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32 |
| Functional Height (Decimal) | 1.26 |
| Overall Height (Metric) | 35 |
| Overall Height (Decimal) | 1.38 |
| Tightening Torque (Nm) | 4 |
| Holder Form | PSSN45 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.97 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 2.464 |
| Item Height (Inches) | 4.8 |
| Item Length (Inches) | 1.97 |
| Rake Angle Orthogonal | 8 |
| Head Length (Inch) | 1.154 |
| Overall Height (Inch) | 1.378 |
| Shank Width (Inch) | 0.984 |
| Shank Height (Inch) | 1.26 |
