Ceratizit
70516625

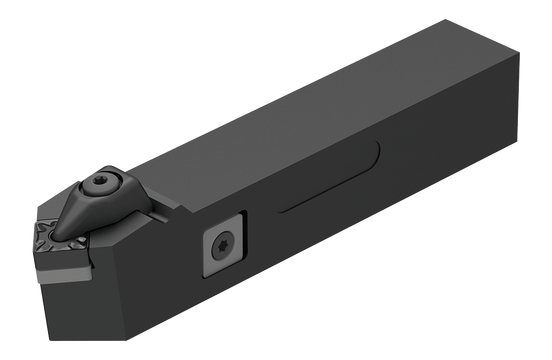

MAXILOCK D EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150 |
|---|---|
| Series | MaxiLock-D |
| Toolholder Style | DSDNN |
| Overall Length (Inch) | 5.91 |
| Short Description | DSDNN 2525 M12 |
| Long Description | MAXILOCK D EXTERNAL TOOLHOLDER DSDNN 2525 M12 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 25 mm |
| Shank Width (Decimal) | 0.99 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 25 |
| Functional Width (Decimal) | 0.5 |
| Functional Width (Metric) | 12.5 |
| Head Length (Decimal) | 1.5 |
| Head Length (Metric) | 38 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 25 |
| Functional Height (Decimal) | 0.99 |
| Inclination Angle | 8 degrees |
| Overall Height (Metric) | 28.8 |
| Overall Height (Decimal) | 1.14 |
| Tightening Torque (Nm) | 4 |
| Holder Form | DSDN45 |
| Cutting Direction | NEUTRAL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.97 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 1.649 |
| Item Height (Inches) | 4.8 |
| Item Length (Inches) | 1.97 |
| Head Length (Inch) | 1.496 |
| Overall Height (Inch) | 1.134 |
| Shank Width (Inch) | 0.984 |
| Shank Height (Inch) | 0.984 |
