Ceratizit
70534132

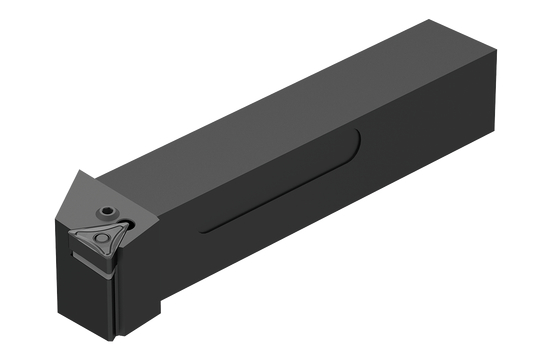

MAXILOCK N EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PTFNR |
| Overall Length (Inch) | 6.7 |
| Short Description | PTFNR 3225 P22-T |
| Long Description | MAXILOCK N EXTERNAL TOOLHOLDER PTFNR 3225 P22-T |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 32 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.99 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 32 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32 |
| Head Length (Decimal) | 1 |
| Head Length (Metric) | 25.2 |
| End Chamfer Angle | 30 degrees |
| End Chamfer Distance (Decimal) | 0.3 |
| End Chamfer Distance (Metric) | 7.6 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32 |
| Functional Height (Decimal) | 1.26 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 36.5 |
| Overall Height (Decimal) | 1.44 |
| Tightening Torque (Nm) | 4 |
| Holder Form | PTFN90 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.97 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 2.439 |
| Item Height (Inches) | 4.8 |
| Item Length (Inches) | 1.97 |
| Rake Angle Orthogonal | 6 |
| Head Length (Inch) | 0.992 |
| Overall Height (Inch) | 1.437 |
| Shank Width (Inch) | 0.984 |
| Shank Height (Inch) | 1.26 |
