Ceratizit
7056812500

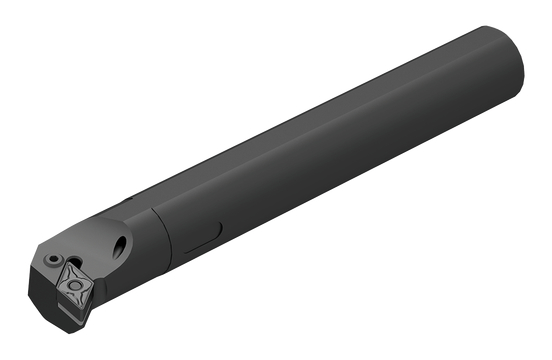

MAXILOCK N INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 200 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PDUNR |
| Overall Length (Inch) | 7.88 |
| Short Description | A25R PDUNR 11 |
| Long Description | MAXILOCK N INTERNAL TOOLHOLDER A25R PDUNR 11 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Orthogonal Rake Angle | 12.50 degrees |
| Shank Height (Metric) | 23 |
| Connection Diameter (Decimal) | 0.99 |
| Connection Diameter (Metric) | 25 |
| Functional Width (Decimal) | 0.73 |
| Functional Width (Metric) | 18.5 |
| Head Length (Decimal) | 0.4 |
| Head Length (Metric) | 10 |
| Min. Bore Diameter (Decimal) | 1.26 |
| Min. Bore Diameter (Metric) | 32 |
| End Chamfer Angle | 60 degrees |
| End Chamfer Distance (Decimal) | 0.46 |
| End Chamfer Distance (Metric) | 11.6 |
| Body Diameter Reduced (Decimal) | 0.97 |
| Body Diameter Reduced (Metric) | 24.5 |
| Connection Type | CYL |
| Inclination Angle | 7 degrees |
| Reduced Body Diameter Length (Metric) | 36 |
| Reduced Body Diameter Length (Decimal) | 1.42 |
| Tightening Torque (Nm) | 3 |
| Holder Form | PDUN93 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.984 |
| Minimum Bore Diameter (Metric) | 32 |
| Item Width (Inches) | 1.57 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 25 |
| Base Material | STEEL |
| Item Weight (lbs) | 1.712 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 7.99 |
| Rake Angle Orthogonal | 12.5 |
| Head Length (Inch) | 0.394 |
| Minimum Bore Diameter (Inch) | 1.26 |
| Shank Height (Inch) | 0.906 |
