Ceratizit
70569240

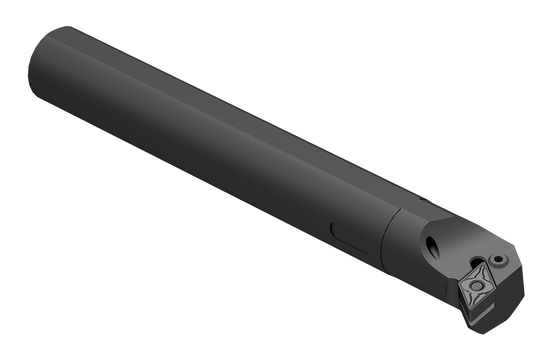

MAXILOCK N INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 300 |
|---|---|
| Series | MaxiLock-N |
| Toolholder Style | PDUNL |
| Overall Length (Inch) | 11.82 |
| Short Description | A40T PDUNL 15 |
| Long Description | MAXILOCK N INTERNAL TOOLHOLDER A40T PDUNL 15 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 38 mm |
| Orthogonal Rake Angle | 13 degrees |
| Shank Height (Metric) | 38 |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Functional Width (Decimal) | 1.07 |
| Functional Width (Metric) | 27 |
| Head Length (Decimal) | 0.6 |
| Head Length (Metric) | 15 |
| Min. Bore Diameter (Decimal) | 1.97 |
| Min. Bore Diameter (Metric) | 50 |
| End Chamfer Angle | 65 degrees |
| End Chamfer Distance (Decimal) | 0.79 |
| End Chamfer Distance (Metric) | 20 |
| Body Diameter Reduced (Decimal) | 1.56 |
| Body Diameter Reduced (Metric) | 39.5 |
| Connection Type | CYL |
| Inclination Angle | 7 degrees |
| Reduced Body Diameter Length (Metric) | 60 |
| Reduced Body Diameter Length (Decimal) | 2.37 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | PDUN93 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 1.575 |
| Minimum Bore Diameter (Metric) | 50 |
| Item Width (Inches) | 1.93 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 40 |
| Base Material | STEEL |
| Item Weight (lbs) | 6.288 |
| Item Height (Inches) | 5 |
| Item Length (Inches) | 1.93 |
| Rake Angle Orthogonal | 13 |
| Head Length (Inch) | 0.591 |
| Minimum Bore Diameter (Inch) | 1.969 |
| Shank Height (Inch) | 1.496 |
