Ceratizit
70652132

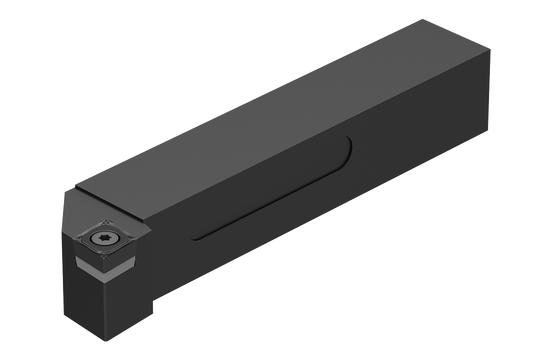

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 6.7 |
| Short Description | SCLCR 3225 P12 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SCLCR 3225 P12 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 32 mm |
| Shank Width (Decimal) | 0.99 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 32 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32 |
| Head Length (Decimal) | 0.79 |
| Head Length (Metric) | 20 |
| End Chamfer Angle | 45 degrees |
| End Chamfer Distance (Decimal) | 0.56 |
| End Chamfer Distance (Metric) | 14 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32 |
| Functional Height (Decimal) | 1.26 |
| Overall Height (Metric) | 31.3 |
| Overall Height (Decimal) | 1.24 |
| Tightening Torque (Nm) | 5 |
| Holder Form | SCLC95 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.97 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 2.454 |
| Item Height (Inches) | 4.8 |
| Item Length (Inches) | 1.97 |
| Head Length (Inch) | 0.787 |
| Overall Height (Inch) | 1.232 |
| Shank Width (Inch) | 0.984 |
| Shank Height (Inch) | 1.26 |
