Ceratizit
70692012

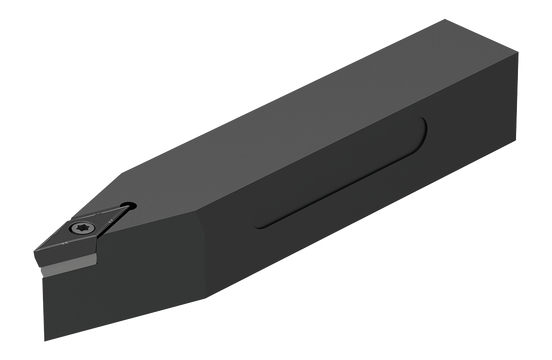

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 80 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVVCN |
| Overall Length (Inch) | 3.15 |
| Short Description | SVVCN 1212 F11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SVVCN 1212 F11 |
| Direction Of Hand | Neutral |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 12 mm |
| Shank Height | 12 mm |
| Shank Width (Decimal) | 0.48 |
| Shank Width (Metric) | 12 |
| Shank Height (Metric) | 12 |
| Functional Width (Decimal) | 0.24 |
| Functional Width (Metric) | 6 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 12 |
| Functional Height (Decimal) | 0.48 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SVVC72,5 |
| Cutting Direction | NEUTRAL |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 0.87 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.2 |
| Item Height (Inches) | 3.31 |
| Item Length (Inches) | 0.87 |
| Shank Width (Inch) | 0.472 |
| Shank Height (Inch) | 0.472 |
