Ceratizit
70696016

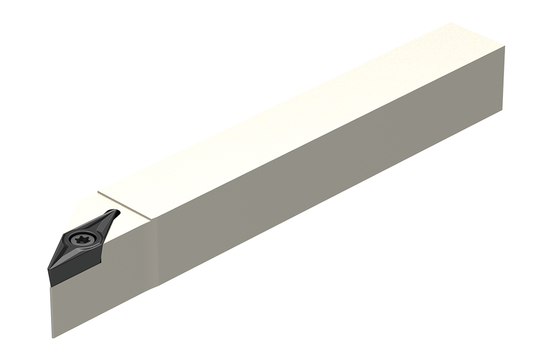

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVJCR |
| Overall Length (Inch) | 3.94 |
| Short Description | SVJCR 1616 H11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SVJCR 1616 H11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 16 mm |
| Shank Height | 16 mm |
| Shank Width (Decimal) | 0.63 |
| Shank Width (Metric) | 16 |
| Shank Height (Metric) | 16 |
| Functional Width (Decimal) | 0.79 |
| Functional Width (Metric) | 20 |
| Head Length (Decimal) | 0.85 |
| Head Length (Metric) | 21.5 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 16 |
| Functional Height (Decimal) | 0.63 |
| Overall Height (Metric) | 15.5 |
| Overall Height (Decimal) | 0.61 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SVJC93 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.18 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.419 |
| Item Height (Inches) | 3.07 |
| Item Length (Inches) | 1.18 |
| Head Length (Inch) | 0.846 |
| Overall Height (Inch) | 0.61 |
| Shank Width (Inch) | 0.63 |
| Shank Height (Inch) | 0.63 |
