Ceratizit
70698012

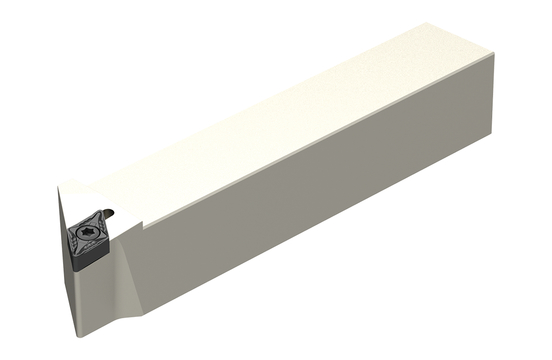

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SDJNR |
| Overall Length (Inch) | 3.94 |
| Short Description | SDJNR 1212 H11 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SDJNR 1212 H11 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 12 mm |
| Shank Height | 12 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Width (Decimal) | 0.48 |
| Shank Width (Metric) | 12 |
| Shank Height (Metric) | 12 |
| Functional Width (Decimal) | 0.48 |
| Functional Width (Metric) | 12 |
| Head Length (Decimal) | 0.84 |
| Head Length (Metric) | 21.3 |
| End Chamfer Angle | 58.50 degrees |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 12 |
| Functional Height (Decimal) | 0.48 |
| Inclination Angle | 6 degrees |
| Overall Height (Metric) | 15.8 |
| Overall Height (Decimal) | 0.63 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SDJN93 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 0.98 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 0.278 |
| Item Height (Inches) | 0.98 |
| Item Length (Inches) | 4.33 |
| Rake Angle Orthogonal | 6 |
| Head Length (Inch) | 0.839 |
| Overall Height (Inch) | 0.622 |
| Shank Width (Inch) | 0.472 |
| Shank Height (Inch) | 0.472 |
