Ceratizit
70705232

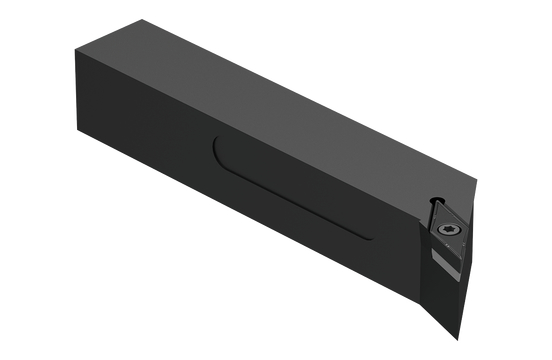

MAXILOCK S EXTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 170 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SVHCL |
| Overall Length (Inch) | 6.7 |
| Short Description | SVHCL 3225 P22 |
| Long Description | MAXILOCK S EXTERNAL TOOLHOLDER SVHCL 3225 P22 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Shank Height | 32 mm |
| Shank Width (Decimal) | 0.99 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 32 |
| Functional Width (Decimal) | 1.26 |
| Functional Width (Metric) | 32 |
| Head Length (Decimal) | 0.78 |
| Head Length (Metric) | 19.6 |
| Connection Type | VKT - Square |
| Functional Height (Metric) | 32 |
| Functional Height (Decimal) | 1.26 |
| Tightening Torque (Nm) | 5 |
| Holder Form | SVHC107,5 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Item Width (Inches) | 1.57 |
| Connection type machine side | VKT - SQUARE |
| Base Material | STEEL |
| Item Weight (lbs) | 2.295 |
| Item Height (Inches) | 1.57 |
| Item Length (Inches) | 1.97 |
| Head Length (Inch) | 0.772 |
| Shank Width (Inch) | 0.984 |
| Shank Height (Inch) | 1.26 |
