Ceratizit
70716210

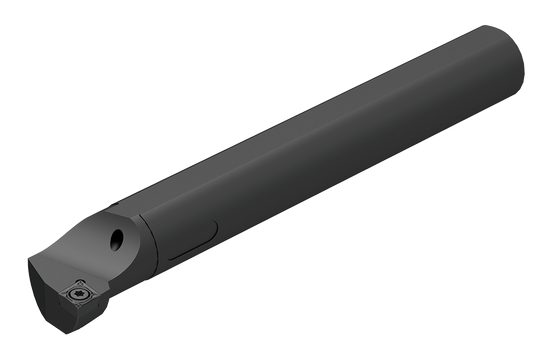

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 100 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 3.94 |
| Short Description | A10H SCLCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A10H SCLCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 9.50 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Height (Metric) | 9.5 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Functional Width (Decimal) | 0.28 |
| Functional Width (Metric) | 7 |
| Head Length (Decimal) | 0.39 |
| Head Length (Metric) | 9.88 |
| Min. Bore Diameter (Decimal) | 0.52 |
| Min. Bore Diameter (Metric) | 13 |
| End Chamfer Angle | 42.26 degrees |
| End Chamfer Distance (Decimal) | 0.39 |
| End Chamfer Distance (Metric) | 9.8 |
| Body Diameter Reduced (Decimal) | 0.39 |
| Body Diameter Reduced (Metric) | 9.7 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 19 |
| Reduced Body Diameter Length (Decimal) | 0.75 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCLC95 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.394 |
| Minimum Bore Diameter (Metric) | 13 |
| Item Width (Inches) | 0.63 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10 |
| Base Material | STEEL |
| Item Weight (lbs) | 0.136 |
| Item Height (Inches) | 3.23 |
| Item Length (Inches) | 0.63 |
| Rake Angle Orthogonal | 7 |
| Head Length (Inch) | 0.389 |
| Minimum Bore Diameter (Inch) | 0.512 |
| Shank Height (Inch) | 0.374 |
