Ceratizit
70716212

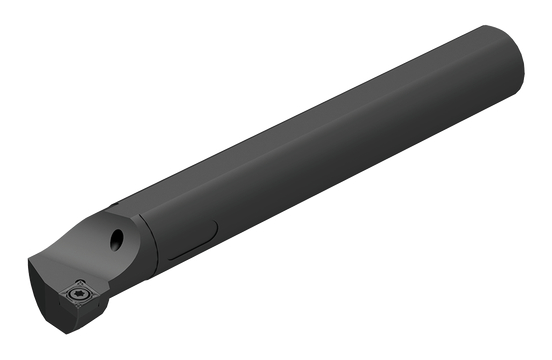

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 4.93 |
| Short Description | A12K SCLCR 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A12K SCLCR 06 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 11.50 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Height (Metric) | 11.5 |
| Connection Diameter (Decimal) | 0.48 |
| Connection Diameter (Metric) | 12 |
| Functional Width (Decimal) | 0.36 |
| Functional Width (Metric) | 9 |
| Head Length (Decimal) | 0.46 |
| Head Length (Metric) | 11.63 |
| Min. Bore Diameter (Decimal) | 0.63 |
| Min. Bore Diameter (Metric) | 16 |
| End Chamfer Angle | 42.26 degrees |
| End Chamfer Distance (Decimal) | 0.38 |
| End Chamfer Distance (Metric) | 9.55 |
| Body Diameter Reduced (Decimal) | 0.47 |
| Body Diameter Reduced (Metric) | 11.7 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 22 |
| Reduced Body Diameter Length (Decimal) | 0.87 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCLC95 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.472 |
| Minimum Bore Diameter (Metric) | 16 |
| Item Width (Inches) | 0.63 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 12 |
| Base Material | STEEL |
| Item Weight (lbs) | 0.238 |
| Item Height (Inches) | 3.23 |
| Item Length (Inches) | 0.63 |
| Rake Angle Orthogonal | 7 |
| Head Length (Inch) | 0.458 |
| Minimum Bore Diameter (Inch) | 0.63 |
| Shank Height (Inch) | 0.453 |
