Ceratizit
70716216

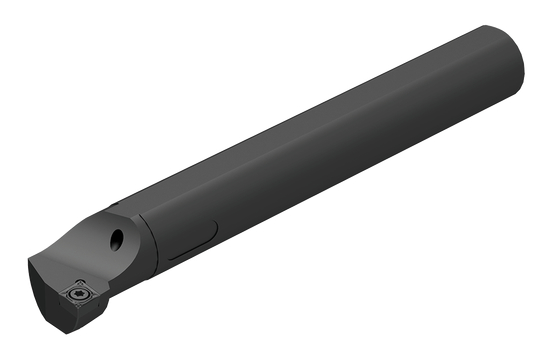

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 150 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCR |
| Overall Length (Inch) | 5.91 |
| Short Description | A16M SCLCR 09 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A16M SCLCR 09 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 15 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Height (Metric) | 15 |
| Connection Diameter (Decimal) | 0.63 |
| Connection Diameter (Metric) | 16 |
| Functional Width (Decimal) | 0.44 |
| Functional Width (Metric) | 11 |
| Head Length (Decimal) | 0.6 |
| Head Length (Metric) | 15 |
| Min. Bore Diameter (Decimal) | 0.79 |
| Min. Bore Diameter (Metric) | 20 |
| End Chamfer Angle | 44.17 degrees |
| End Chamfer Distance (Decimal) | 0.52 |
| End Chamfer Distance (Metric) | 13 |
| Body Diameter Reduced (Decimal) | 0.62 |
| Body Diameter Reduced (Metric) | 15.7 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 29 |
| Reduced Body Diameter Length (Decimal) | 1.15 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SCLC95 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.63 |
| Minimum Bore Diameter (Metric) | 20 |
| Item Width (Inches) | 1.18 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 16 |
| Base Material | STEEL |
| Item Weight (lbs) | 0.513 |
| Item Height (Inches) | 3.07 |
| Item Length (Inches) | 1.18 |
| Rake Angle Orthogonal | 7 |
| Head Length (Inch) | 0.591 |
| Minimum Bore Diameter (Inch) | 0.787 |
| Shank Height (Inch) | 0.591 |
