Ceratizit
70719010

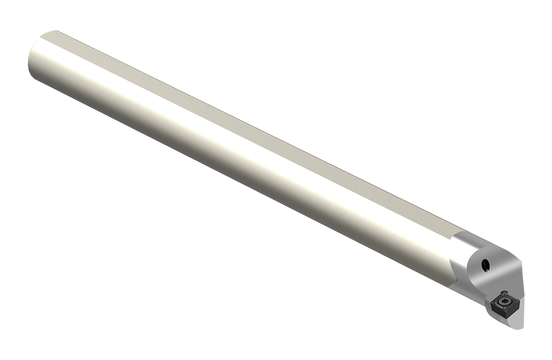

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 125 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCL |
| Overall Length (Inch) | 4.93 |
| Short Description | E10K SCLCL 06 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER E10K SCLCL 06 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | HM |
| Shank Height | 9 mm |
| Orthogonal Rake Angle | 13 degrees |
| Shank Height (Metric) | 9 |
| Connection Diameter (Decimal) | 0.4 |
| Connection Diameter (Metric) | 10 |
| Functional Width (Decimal) | 0.28 |
| Functional Width (Metric) | 7 |
| Head Length (Decimal) | 0.38 |
| Head Length (Metric) | 9.5 |
| Min. Bore Diameter (Decimal) | 0.52 |
| Min. Bore Diameter (Metric) | 13 |
| End Chamfer Angle | 15 degrees |
| End Chamfer Distance (Decimal) | 0.1 |
| End Chamfer Distance (Metric) | 2.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 22 |
| Reduced Body Diameter Length (Decimal) | 0.87 |
| Tightening Torque (Nm) | 1,2 |
| Holder Form | SCLC95 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.394 |
| Minimum Bore Diameter (Metric) | 13 |
| Item Width (Inches) | 0.63 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 10 |
| Base Material | HM |
| Item Weight (lbs) | 0.27 |
| Item Height (Inches) | 3.23 |
| Item Length (Inches) | 0.63 |
| Rake Angle Orthogonal | 13 |
| Head Length (Inch) | 0.374 |
| Minimum Bore Diameter (Inch) | 0.512 |
| Shank Height (Inch) | 0.354 |
