Ceratizit
70719020

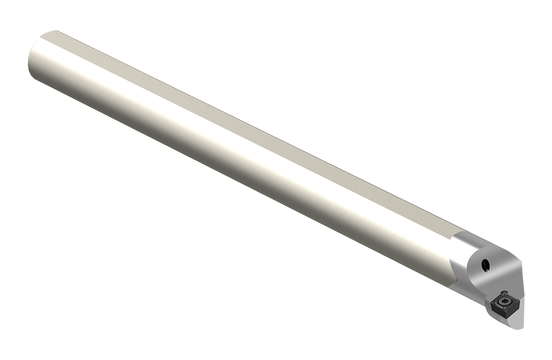

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 250 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SCLCL |
| Overall Length (Inch) | 9.85 |
| Short Description | E20S SCLCL 09 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER E20S SCLCL 09 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | HM |
| Shank Height | 18.50 mm |
| Orthogonal Rake Angle | 7 degrees |
| Shank Height (Metric) | 18.5 |
| Connection Diameter (Decimal) | 0.79 |
| Connection Diameter (Metric) | 20 |
| Functional Width (Decimal) | 0.52 |
| Functional Width (Metric) | 13 |
| Head Length (Decimal) | 0.54 |
| Head Length (Metric) | 13.5 |
| Min. Bore Diameter (Decimal) | 0.99 |
| Min. Bore Diameter (Metric) | 25 |
| End Chamfer Angle | 30 degrees |
| End Chamfer Distance (Decimal) | 0.06 |
| End Chamfer Distance (Metric) | 1.3 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 38 |
| Reduced Body Diameter Length (Decimal) | 1.5 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SCLC95 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.787 |
| Minimum Bore Diameter (Metric) | 25 |
| Item Width (Inches) | 1.5 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 20 |
| Base Material | HM |
| Item Weight (lbs) | 2.2 |
| Item Height (Inches) | 7.56 |
| Item Length (Inches) | 1.5 |
| Rake Angle Orthogonal | 7 |
| Head Length (Inch) | 0.531 |
| Minimum Bore Diameter (Inch) | 0.984 |
| Shank Height (Inch) | 0.728 |
