Ceratizit
70720232

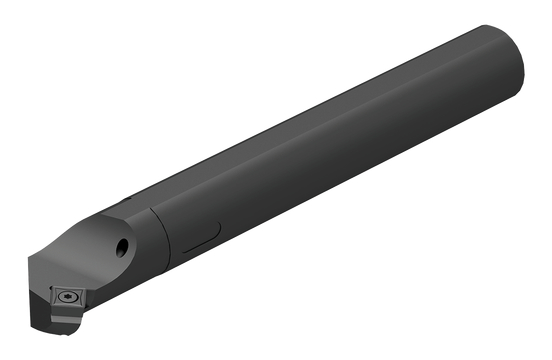

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 258.3 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SSSCR |
| Overall Length (Inch) | 10.17 |
| Short Description | A32S SSSCR 12 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A32S SSSCR 12 |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 31 mm |
| Orthogonal Rake Angle | 6 degrees |
| Shank Height (Metric) | 31 |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Functional Length (Decimal) | 9.85 |
| Functional Length (Metric) | 250 |
| Functional Width (Decimal) | 0.87 |
| Functional Width (Metric) | 22 |
| Head Length (Decimal) | 0.53 |
| Head Length (Metric) | 13.47 |
| Min. Bore Diameter (Decimal) | 1.58 |
| Min. Bore Diameter (Metric) | 40 |
| End Chamfer Angle | 49.40 degrees |
| End Chamfer Distance (Decimal) | 0.63 |
| End Chamfer Distance (Metric) | 16 |
| Body Diameter Reduced (Decimal) | 1.24 |
| Body Diameter Reduced (Metric) | 31.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 50 |
| Reduced Body Diameter Length (Decimal) | 1.97 |
| Tightening Torque (Nm) | 5 |
| Holder Form | SSSC45 |
| Cutting Direction | RIGHT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 1.26 |
| Minimum Bore Diameter (Metric) | 40 |
| Item Width (Inches) | 1.97 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 32 |
| Base Material | STEEL |
| Item Weight (lbs) | 3.432 |
| Item Height (Inches) | 7.56 |
| Item Length (Inches) | 1.97 |
| Rake Angle Orthogonal | 6 |
| Head Length (Inch) | 0.53 |
| Minimum Bore Diameter (Inch) | 1.575 |
| Shank Height (Inch) | 1.22 |
