Ceratizit
70725225

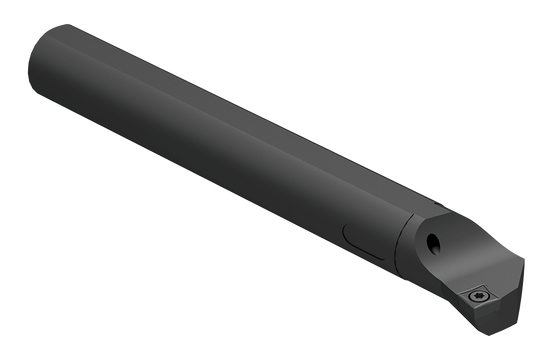

MAXILOCK S INTERNAL TOOLHOLDER
Specifications
| Overall Length (Metric) | 202.4 |
|---|---|
| Series | MaxiLock-S |
| Toolholder Style | SSKCL |
| Overall Length (Inch) | 7.97 |
| Short Description | A25R SSKCL 09 |
| Long Description | MAXILOCK S INTERNAL TOOLHOLDER A25R SSKCL 09 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Height | 23 mm |
| Orthogonal Rake Angle | 4 degrees |
| Shank Height (Metric) | 23 |
| Connection Diameter (Decimal) | 0.99 |
| Connection Diameter (Metric) | 25 |
| Functional Length (Decimal) | 7.88 |
| Functional Length (Metric) | 200 |
| Functional Width (Decimal) | 0.67 |
| Functional Width (Metric) | 17 |
| Head Length (Decimal) | 0.76 |
| Head Length (Metric) | 19.19 |
| Min. Bore Diameter (Decimal) | 1.26 |
| Min. Bore Diameter (Metric) | 32 |
| End Chamfer Angle | 55.97 degrees |
| End Chamfer Distance (Decimal) | 0.5 |
| End Chamfer Distance (Metric) | 12.5 |
| Body Diameter Reduced (Decimal) | 0.97 |
| Body Diameter Reduced (Metric) | 24.5 |
| Connection Type | CYL |
| Reduced Body Diameter Length (Metric) | 36 |
| Reduced Body Diameter Length (Decimal) | 1.42 |
| Tightening Torque (Nm) | 3,2 |
| Holder Form | SSKC75 |
| Cutting Direction | LEFT |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Product Line | CERATIZIT_PERFORMANCE |
| Connection diameter machine side (inch) | 0.984 |
| Minimum Bore Diameter (Metric) | 32 |
| Item Width (Inches) | 1.14 |
| Connection type machine side | CYL |
| Connection diameter machine side (mm) | 25 |
| Base Material | STEEL |
| Item Weight (lbs) | 1.627 |
| Item Height (Inches) | 4.41 |
| Item Length (Inches) | 1.14 |
| Rake Angle Orthogonal | 4 |
| Head Length (Inch) | 0.756 |
| Minimum Bore Diameter (Inch) | 1.26 |
| Shank Height (Inch) | 0.906 |
